1.8 Ton Mini Excavator – Euro 5/EPA Certified with Kubota Engine | 2500kg Crawler Digger
Upgrade your operations with the XT25U 1.8 Ton Mini Excavator, powered by a premium Kubota or Changchai 390 engine. Designed for residential, agricultural, and light construction use, this crawler-type digger is Euro 5/EPA/CE certified, ensuring clean emissions and high performance across Europe and North America.
Key Features:
- Engine Options: Kubota D1105 or Changchai 390
- Rated Power: 20HP / 17kW @ 2200rpm
- Digging Force: 19.5kN
- Bucket Capacity: 0.075 m³
- Operating Weight: 2500 kg
- Boom Swing: 45° for added maneuverability
- Dimensions: 4185 × 1500 × 2450 mm
- Hydraulic Pressure: 18 MPa
- Warranty: 1.5 Years (machine & core components)
Technical Overview – XT25U Model:
- Fuel Tank: 20L | Hydraulic Oil Tank: 18L
- Climbing Angle: 57° | Slewing Speed: 9.5 rpm
- Travel Speed: 2–3.8 km/h
- Max Digging Depth: 2410 mm
- Max Digging Height: 4190 mm
- Max Digging Radius: 4520 mm
- Max Unloading Height: 2880 mm
- Track Gauge: 1070/1270 mm
- Slewing Radius: 700 mm
💡 Optional Models Available:
Models from 1T to 8T including XT-10, XT-13U, XT-18U, XT-35U – available with custom attachments, cabins, tracks, and engine configurations.
Customization & Delivery:
- 🌍 Worldwide shipping (FOB/CIF/DDP available)
- 🎨 Customize color, branding, and attachments
- 🛠️ OEM/ODM welcome – even for 1 unit
- 📹 Video inspection before shipping
Use Cases:
Ideal for landscaping, trenching, farm work, small construction, tight-access areas, and more. Reliable hydraulic system with compact structure and strong power-to-weight ratio.
Click on different models to choose the machine that suits you, or you can contact us.
The price of some models is FOB price, please consult customer servic.
note: All our mini excavators are to be customized, please contact our sales to confirm detail information before/after placing your order. You will be treated friendly and sincerely, and you will find that will be very helpful.
|

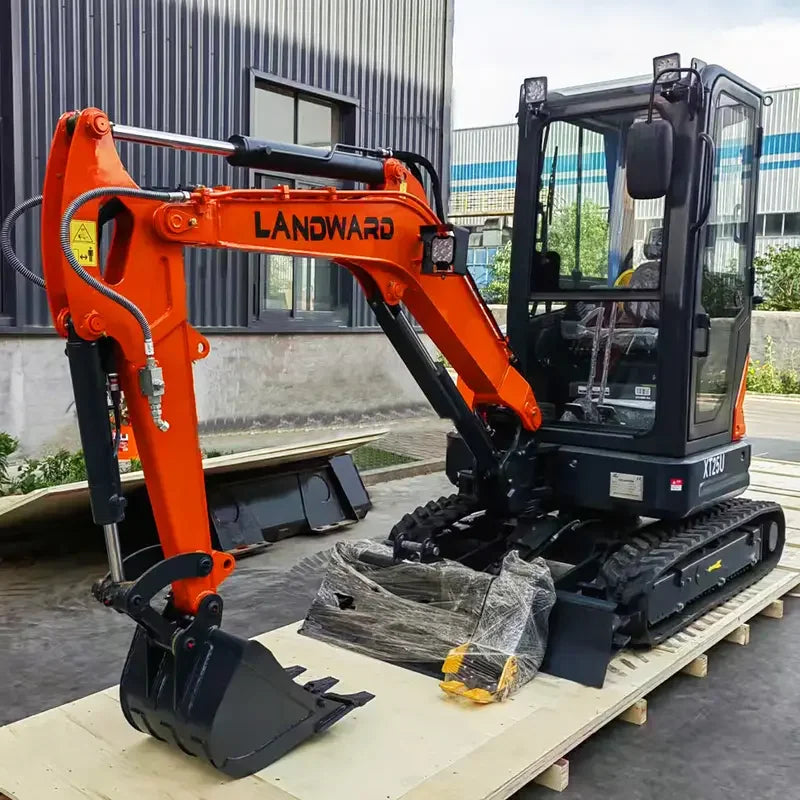

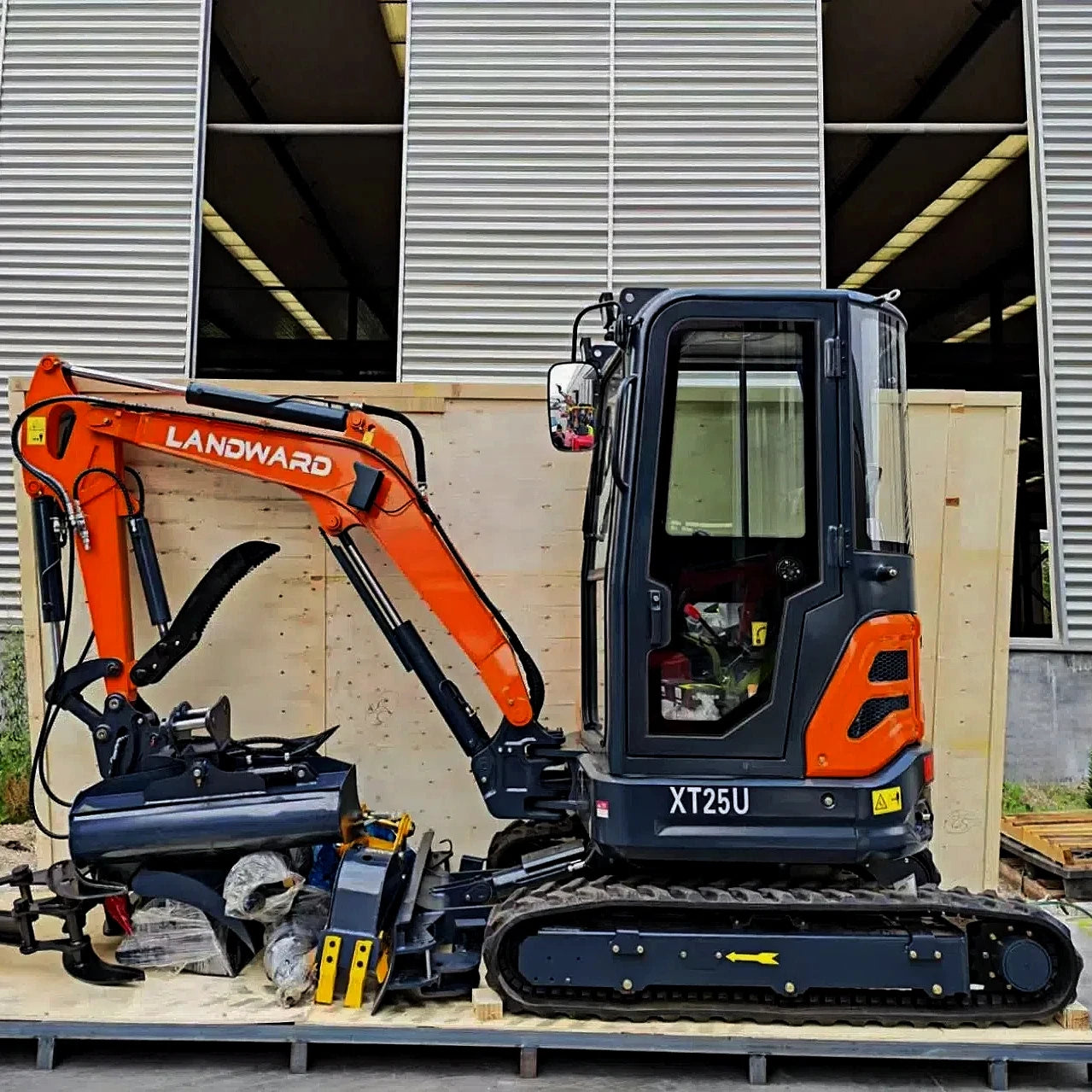

XT-25U Mini Excavator |
|
|
Machine weight (Kg) |
2500 |
|
Rated bucket capacity (m³) |
0.068 |
|
Engine brand |
Yanmar |
|
Engine model |
3TNV80F |
|
Rated power (kw) |
15.2 |
|
Rated displacement (ml) |
1267 |
|
Rated speed (r/min) |
2500 |
|
Climbing angle° |
57 |
|
Slewing speed (r/min) |
9.5 |
|
Travel speed (km/h) |
2-3.8 |
|
Steering control |
Foot pedal control |
|
Drive mode |
Hydraulic drive |
|
Travel motor type |
Piston hydraulic motor |
|
Service brake |
Hydraulic brake |
|
Parking brake |
Hydraulic brake |
|
Fuel tank capacity (L) |
20 |
|
Hydraulic oil tank capacity (L) |
18 |
|
Bucket digging force (KN) |
20 |
|
Transport length (mm) |
4100 |
|
Transport width (mm) |
1500 |
|
Transport height (mm) |
2440 |
|
Slewing radius (mm) |
700 |
|
Track gauge (mm) |
1070/1270 |
|
Maximum digging radius (mm) |
4520 |
|
Maximum digging depth (mm) |
2410 |
|
Maximum digging height (mm) |
4190 |
|
Maximum unloading height (mm) |
2880 |
|
Turntable ground clearance (mm) |
490 |
|
XT-10 Mini Excavator |
|
|
Operating weight (kg) |
1000 |
|
Bucket capacity (m3) |
0.025 |
|
Engine model |
Koop / Briggs & Stratton |
|
Rated power |
7kW/13.5hp |
|
Travel speed (km/h) |
2.2 |
|
Swing speed(r/min) |
12.3 |
|
Setting pressure (KPa) |
20 |
|
Bucket digging force(kN) |
7.5 |
|
Volume of hydraulic tank (L) |
10 |
|
Overall length (mm) |
2876 |
|
Overall width (mm) |
850 |
|
Overall height（to top of cab）(mm) |
2200 |
|
Track length (mm) |
1233 |
|
Track width (mm) |
180 |
|
Max. digging height (mm) |
2550 |
|
Max. dumping height (mm) |
1687 |
|
Max. digging depth (mm) |
1626 |
|
Max. digging reach (mm) |
3077 |
|
Min. swing radius (mm) |
800 |
|
XT-13U Mini Excavator |
|
|
Rated power |
7Kw |
|
Volume of fuel tank |
8L |
|
Standard bucket width |
400mm |
|
Bucket capacity |
0.016m³ |
|
Weight |
1280kg |
|
Engine model |
KOOP |
|
Chassis telescopic range |
Optional |
|
Max.digging force |
8KN |
|
Multi-way valve brand |
north |
|
Hydraulic Pumps |
Shimadzu |
|
Hydraulic flow |
21L/min |
|
Work Pressure |
20Mpa |
|
Swing motor brand |
Livo |
|
Swing speed |
8r/min |
|
Travel motor brand |
Livo |
|
Travel speed |
2km/h |
|
Climbing angle |
30° |
|
Ground pressure |
28Kpa |
|
Max. digging depth |
1800mm |
|
Max. digging reach |
3050mm |
|
Max.vertical arm digging depth |
1650mm |
|
Max.digging height |
2750mm |
|
Max.unloading height |
1950mm |
|
Min. swing radius |
1320mm |
|
Chassis width |
950mm |
|
Height and width of bulldozer |
220*950 |
|
Overall Dimension |
3010*950*1520mm |
|
Track width |
180mm |
|
Track center distance |
770 |
|
Pin diameter |
25 |
|
Internal file |
90 |
|
Hole distance |
90 |
|

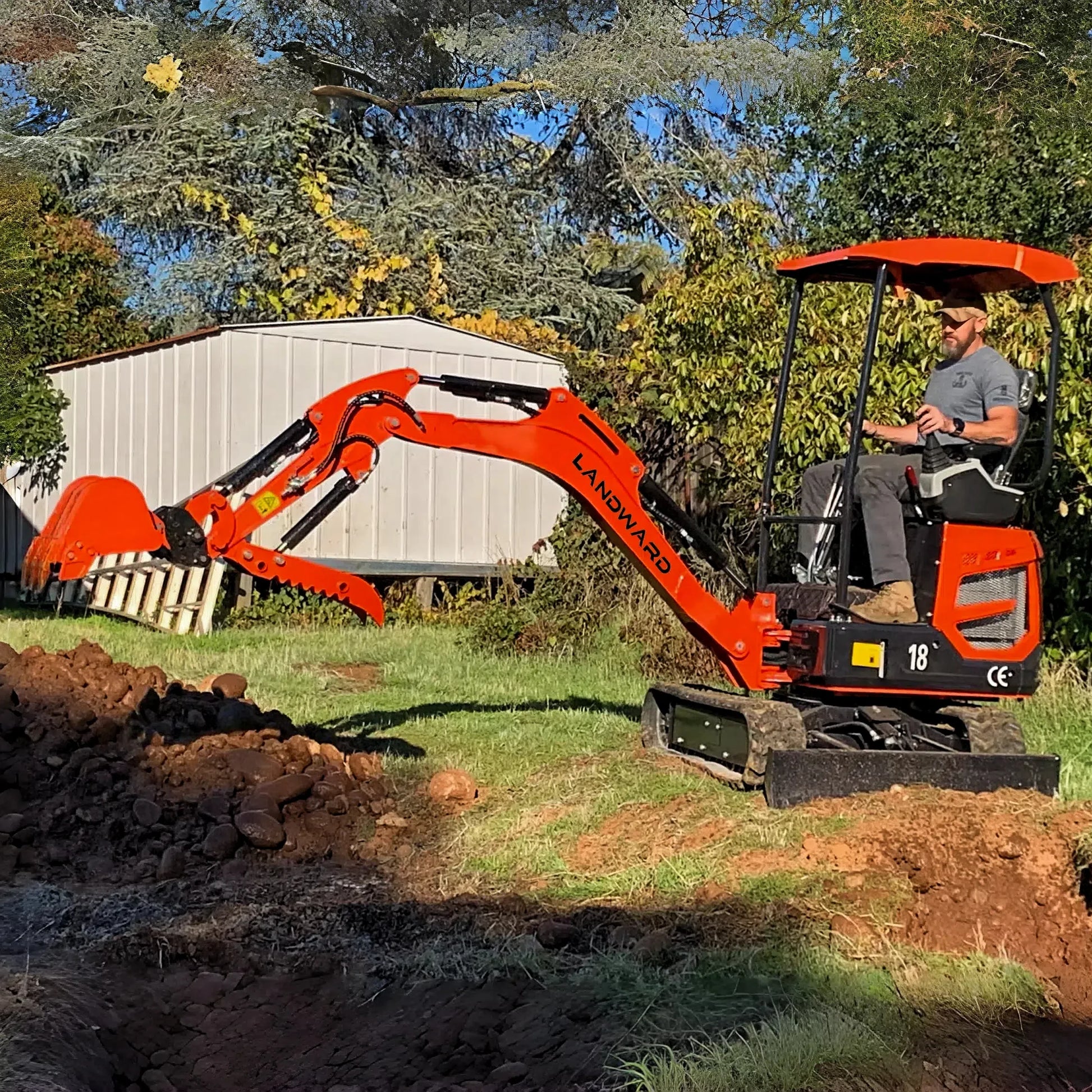

XT-18U MINI EXCAVATOR |
|
|
Operating weight (kg) |
1800 |
|
Bucket capacity (m3) |
0.045 |
|
Engine model |
Laidong 385 / Kubota D902 |
|
Rated power |
20kW/11.2kW |
|
Volume of fuel tank (L) |
12 |
|
Travel speed (km/h) |
2 |
|
Swing speed(r/min) |
12.3 |
|
Setting pressure (KPa) |
20 |
|
Bucket digging force(kN) |
7.5 |
|
Volume of hydraulic tank (L) |
10 |
|
Overall length (mm) |
2550 |
|
Overall width (mm) |
1100 |
|
Overall height （to top of cab）(mm) |
2200 |
|
Track length (mm) |
1800 |
|
Track width (mm) |
250 |
|
Max. digging height (mm) |
2900 |
|
Max. dumping height (mm) |
1950 |
|
Max. digging depth (mm) |
1900 |
|
Max. digging reach (mm) |
3227 |
|
Min. swing radius (mm) |
840 |
|
Hydraulic oil radiator |
Standard |
|
Boom swing |
optional |
|
Tracks extandable |
990-1160mm,optional |
Our have mini excavators from 1ton-8tons, if need other model which not showed here, please click and find our professional salesman for more information and the best price.
