Automotive Smoke Machine 12V Built-in Air Pump EVAP Vacuum Leak Detector Car Pipe Leakage Diagnostic Tester 2025 FOXWELL SD203
Automotive Smoke Machine 12V Built-in Air Pump EVAP Vacuum Leak Detector Car Pipe Leakage Diagnostic Tester 2025 FOXWELL SD203
Couldn't load pickup availability
SPECIFICATIONS:
- Adjustable Flow Meter: Yes
- Built-in Air Pump: Yes
- Hign-concerned Chemical: None
- Item Type: Car Smoke Machines
- OBD Interface: CAN, EOBD, OBDII
- Output Pressure: 0.8-1.2bar
- Power Source: 12V fully charged vehicle battery
- Pressure Gauge: Yes
- Smoke Output: 12L/Min
- Support Vehicle Type: ATV, Heavy Duty/Commercial, Motorcycle, Passenger Vehicle
- Supported System: Intake System Test, Exhaust Systems Test
- Supported System 2: Car Sealing Test, Fuel Tank System Test
- Type: Smoke Leak Detector
- leak test: All pipelines

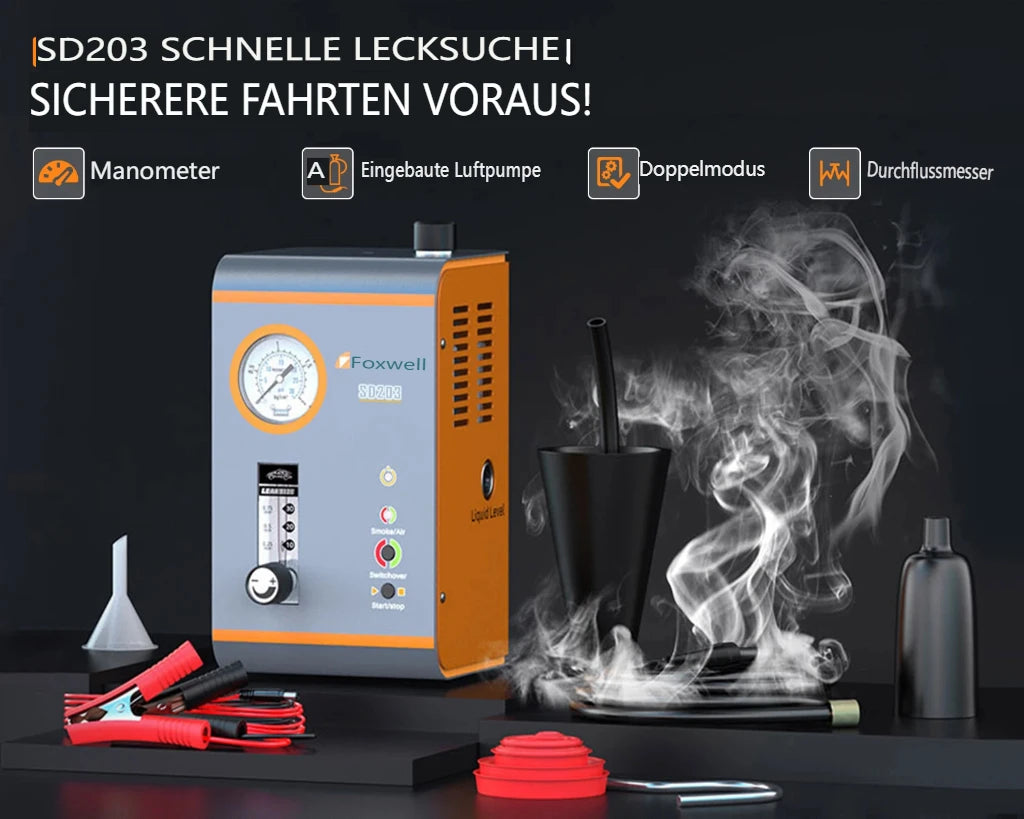

FOXWELL SD203 Erweiterte Funktionen
[23PCS AUTOMOTIVE LEAK DETECTION TOOL KIT]
As Foxwell’s flagship automotive smoke machine, the SD203 is compatible with all 12-volt vehicles, including cars, minivans, light trucks, and more. It provides comprehensive diagnostics across multiple systems such as EVAP, EGR, vacuum, engine, intake, exhaust, fuel tank, turbo, and various pipe connections—ensuring your vehicle stays safe and performing at its best.
[DUAL MODE & DOUBLE ACCURACY]
In air mode, potential leaks can be quickly identified, and smoke-sensitive components inspected with ease, allowing for fast troubleshooting. For precise leak localization, switch seamlessly to smoke mode, which reveals hidden problems with visible smoke. This versatile functionality not only accelerates leak detection but also improves testing efficiency while minimizing smoke fluid consumption.
[BUILT-IN AIR COMPRESSOR]
This automotive leak detector features a high-performance motor that eliminates the need for expensive and bulky external compressors. With a pressure range of 0.8 to 1.2 bar and a smoke output of 16 L/min, users can perform smoke tests anytime, anywhere. Say goodbye to costly setups and welcome a budget-friendly, powerful addition to your toolkit.
[ADJUSTABLE PRESSURE GAUGE & FLOW METER]
Equipped with an integrated pressure gauge and dynamic flow meter, the EVAP smoke machine displays real-time leak status, making even the smallest leaks easy to detect with precision. The smoke output can also be conveniently adjusted by turning the control knob, ensuring unmatched accuracy across different testing conditions.
[MEETS ALL TESTING REQUIREMENTS]
Explore a wide range of diagnostic scenarios with the included 23PCS accessory kit, featuring an intake adapter cone, rubber bladder, and full-size sealing plugs—ensuring a complete seal on any opening. Together with the ST203 smoke leak detector, this durable and practical accessory set allows testing on various vehicle types such as cars, motorcycles, trucks, ATVs, boats, RVs, vans, and more.

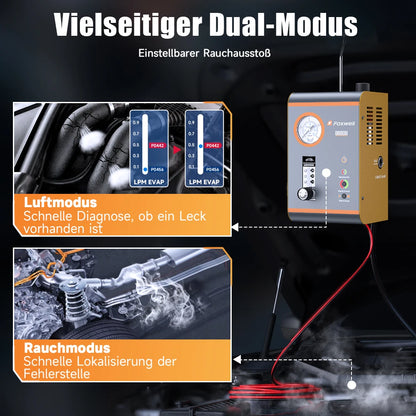

DUAL MODE – NO EXTRA AIR COMPRESSOR REQUIRED!
Air Mode: In air mode, you can check whether there is a leak in the line by blowing air into it and listening for escaping air. If you already own an S300 air conditioning leak detector, you don’t need to purchase an additional air compressor or air pump—making your diagnostics simple and cost-effective.
Smoke Mode: The smoke mode helps you pinpoint the exact location of the leak with visible smoke. Smoke is generated within seconds, drastically reducing diagnostic time.
BUILT-IN AIR PUMP
No external air compressor required! Simply connect the unit directly to your vehicle’s 12V battery, and generate smoke in seconds.
PRESSURE GAUGE
-
No Leak: If the gauge reading remains unchanged, it indicates there is no leakage in the system.
-
Small Leak: If the gauge reading slowly decreases, it indicates a small leak in the system.
-
Massive Leak: If the gauge drops to zero, it indicates a major leak in the system.
ADJUSTABLE FLOW METER
The adjustable air flow meter with control knob makes it easy to regulate smoke output.
Output Flow: <7 L/min
WIDE APPLICATION RANGE
Suitable for all domestic vehicles including cars, motorcycles, snowmobiles, ATVs, beach vehicles, light trucks, and speedboats. When used alongside an automotive diagnostic tool, this leak detector helps accurately locate issues and diagnose faults.
HOW TO PERFORM A LEAK TEST
-
Switch off the vehicle ignition.
For vehicle system leak detection, the engine must be turned off.
-
Remove the air filter and throttle body connections.
-
Clean the inside wall of the intake opening to avoid sharp objects, then insert the universal intake adapter.
-
Connect the power cable to the vehicle’s 12V battery.
-
The power LED will light up—if not, check the power connection.
-
Insert the smoke nozzle into the system through the adapter cone.
-
Wait 30 seconds for the system to pressurize, then check the readings on the gauge and flow meter for leaks.
-
Press the smoke control switch, unplug, and reconnect the smoke nozzle to the adapter if smoke is visibly coming out.
-
The system is ready for leak detection in about 2 minutes. Use a bright flashlight or work light to assist inspection.
-
After testing, press the smoke control switch again to stop smoke generation, and press the air control switch to stop airflow.
-
Wrap up the smoke hose and power cable with the Velcro straps for storage.
Hang the device or store it in an upright position only. Do not lay it flat.
CHOOSING THE RIGHT SMOKE OIL
This device is compatible with mineral-based baby oil, such as Johnson & Johnson Pink Bottle.
For best performance, pure white mineral oil No. 5 is recommended whenever available.
Specifications
- Power source: 12V fully charged vehicle battery
- Current: 6A
- Flow rate: < 7 LPM
- Pressure output: 0.8~1.0 bar

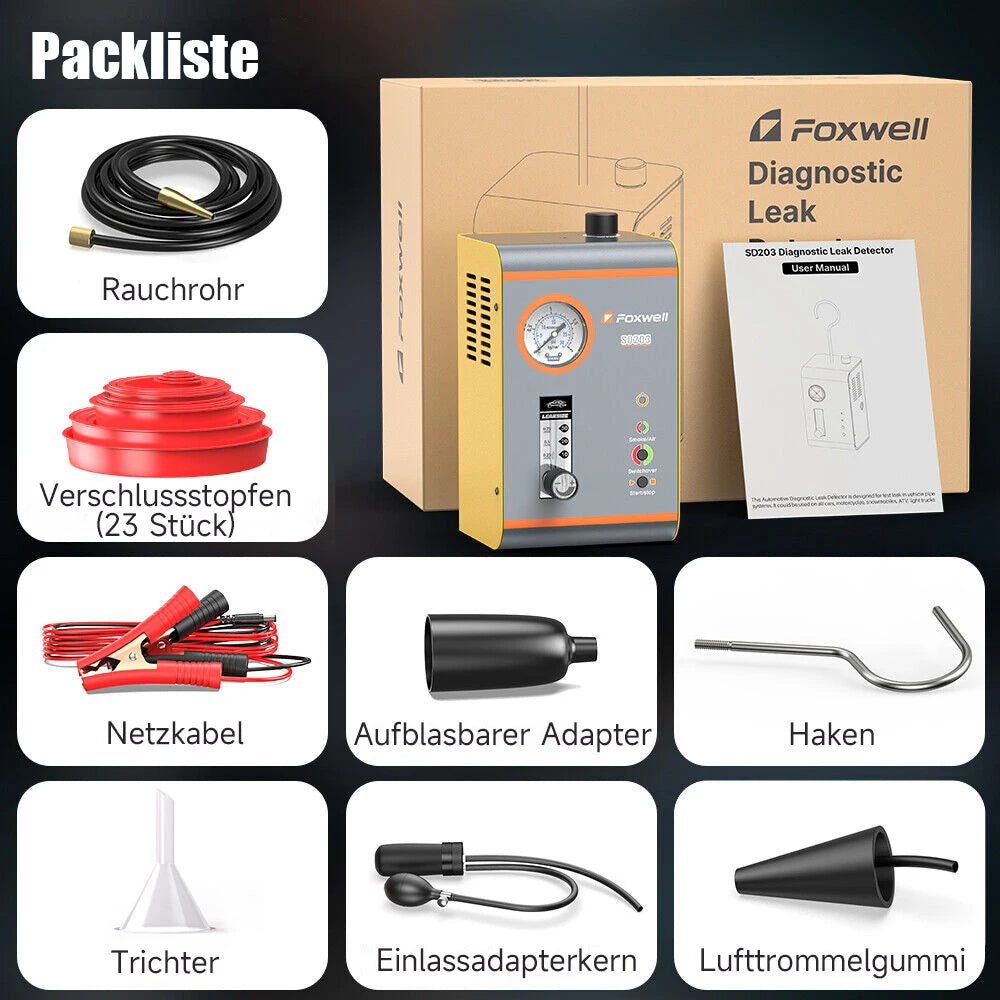

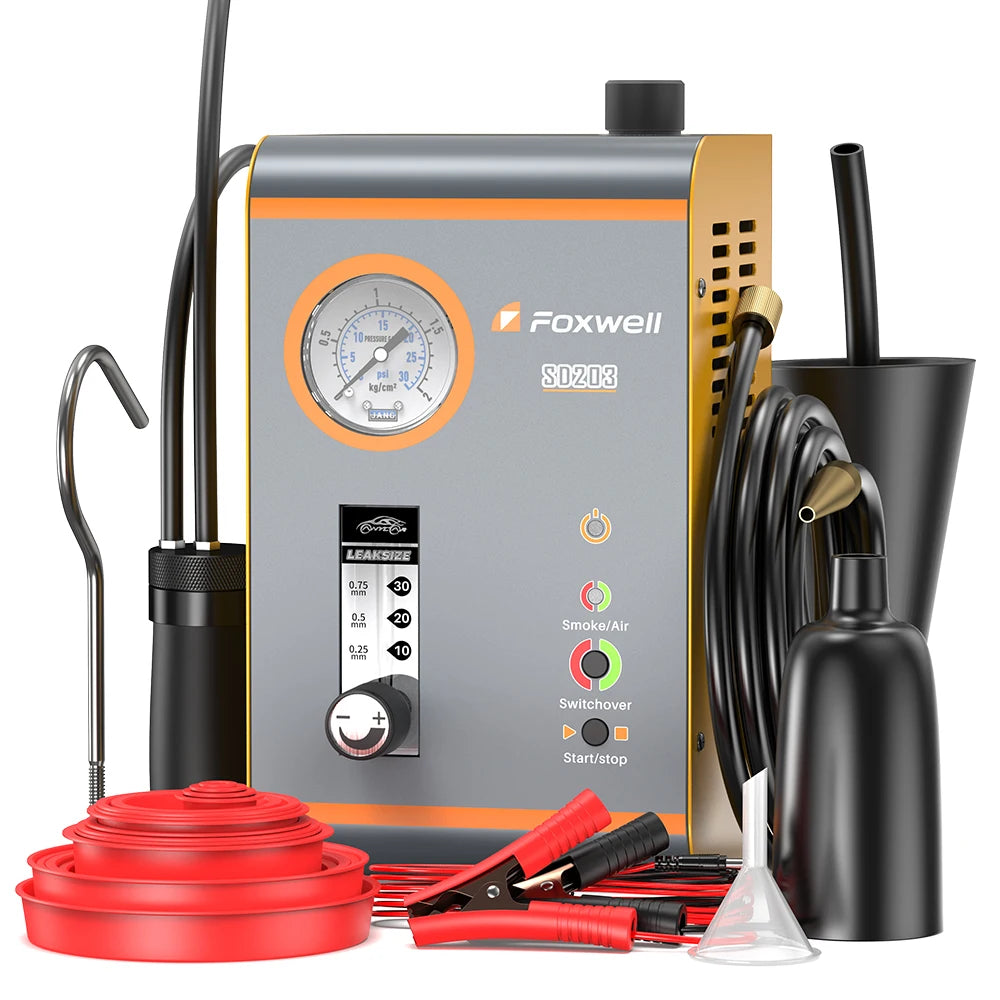

Included Components
- 1 x Hook,
- 1 x Funnel,
- 1 x Power Cords,
- 1 x Inflatable Adapter,
- 1 x Intake Adapter Cone,
- 1 x ST203 Automotive Smoke Machine,
- 1 x User Manual,
- 1 x Cap Stoppers (23pcs),
- 1 x Air Drum Rubber
