Multifunction Machine Worktable for Precision DIY Tasks - Mini Drill Fixture

(BG6300 / BG6330 / BG6350)

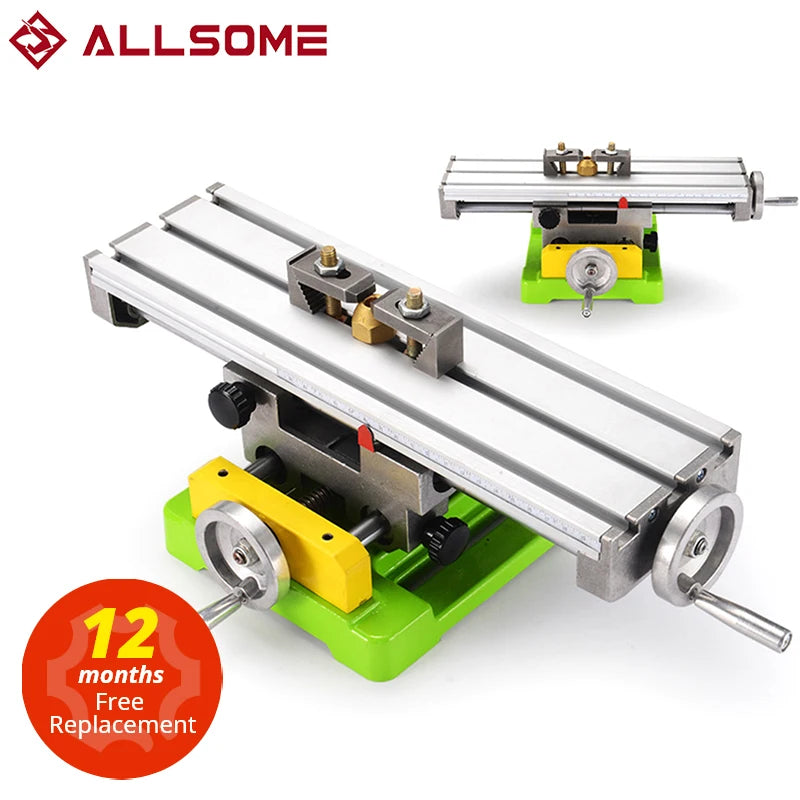

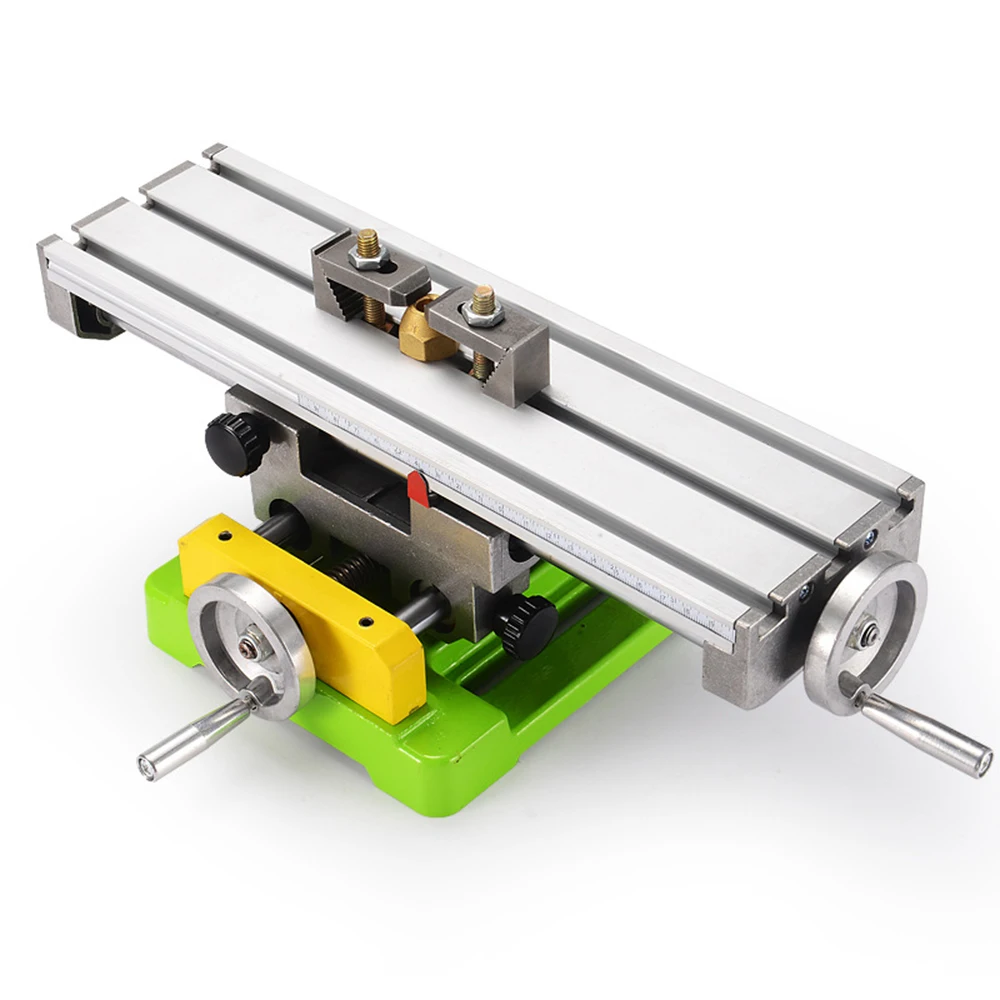

Take your precision drilling and milling work to the next level with the ALLSOME MINIQ Multifunction Drill Vise Fixture. Available in three models—BG6300, BG6330, and BG6350—this versatile mini worktable is engineered for accuracy, compactness, and compatibility with mini drill machines, drill brackets, and other tools in your workshop.

Key Features:

• Universal Compatibility: Designed for use with mini drills, drill bracket series, and other suitable machinery.

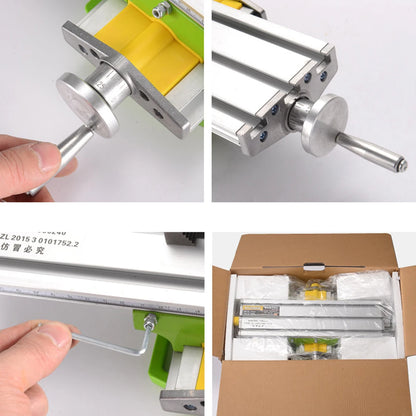

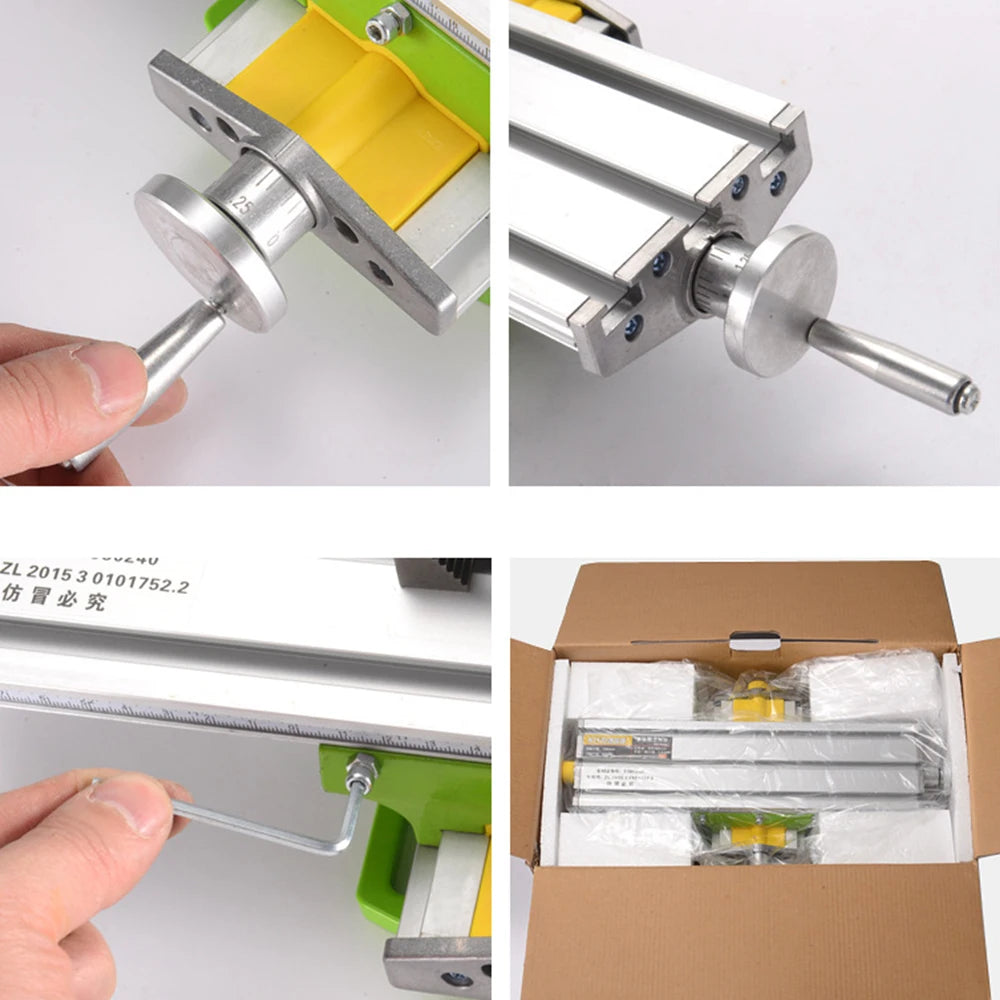

• High Precision Control: Each rotation of the handwheel adjusts 1.25–3mm depending on the model, with 0.05mm scale subdivision for ultra-fine tuning.
• Adjustable Dovetail Aluminum Slots: Robust and space-efficient construction guarantees consistent accuracy over time.
• Built-in T-Slot Design: Three T-shaped grooves (15x8x6mm) ensure secure attachment of vises, clamps, or other tools.
• Durable Aluminum Alloy Frame: Ensures long-lasting performance with minimal maintenance.

Model Specifications:

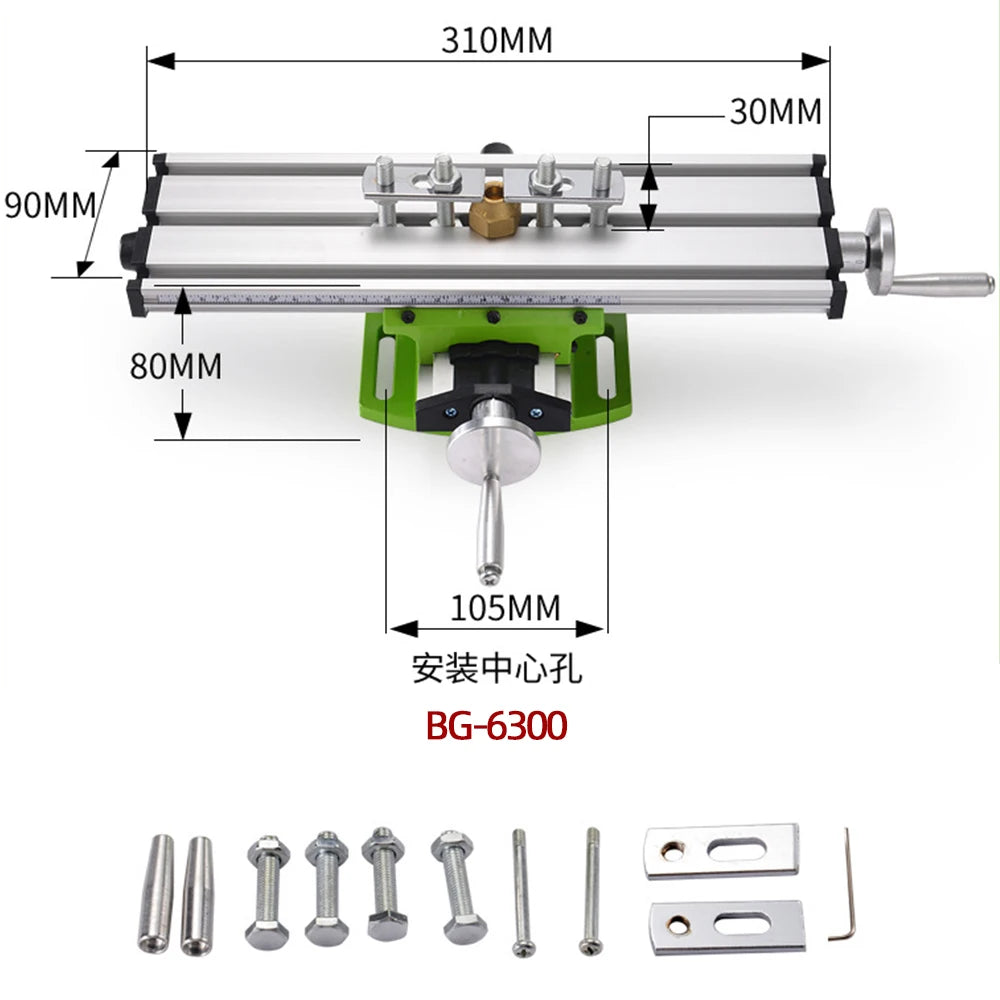

🟡 Model: BG6300

• Table Size: 300 x 90 mm
• X Travel: 200 mm
• Y Travel: 50 mm
• Lead Screws: M8x1.25
• Handwheel: 1 rotation = 1.25 mm
• Subdivision Marks: 0.05 mm

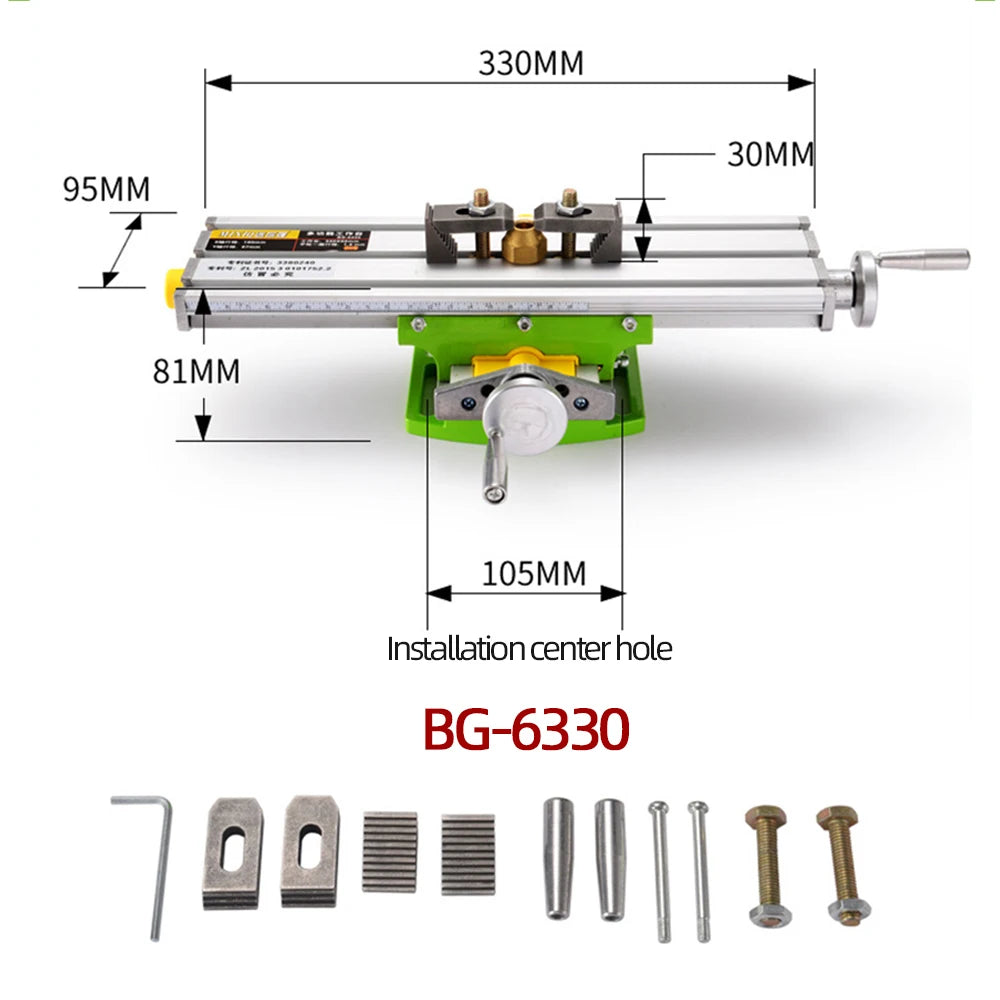

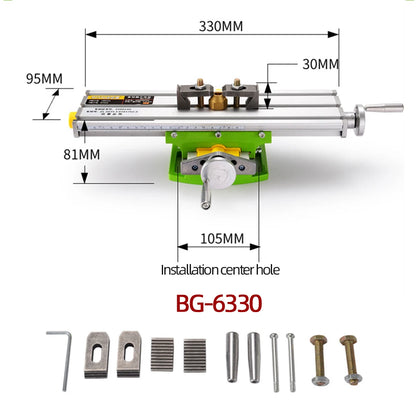

🟡 Model: BG6330

• Table Size: 330 x 95 mm
• X Travel: 190 mm
• Y Travel: 67 mm
• Lead Screws: M10x2
• Handwheel: 1 rotation = 1.5 mm
• Subdivision Marks: 0.05 mm

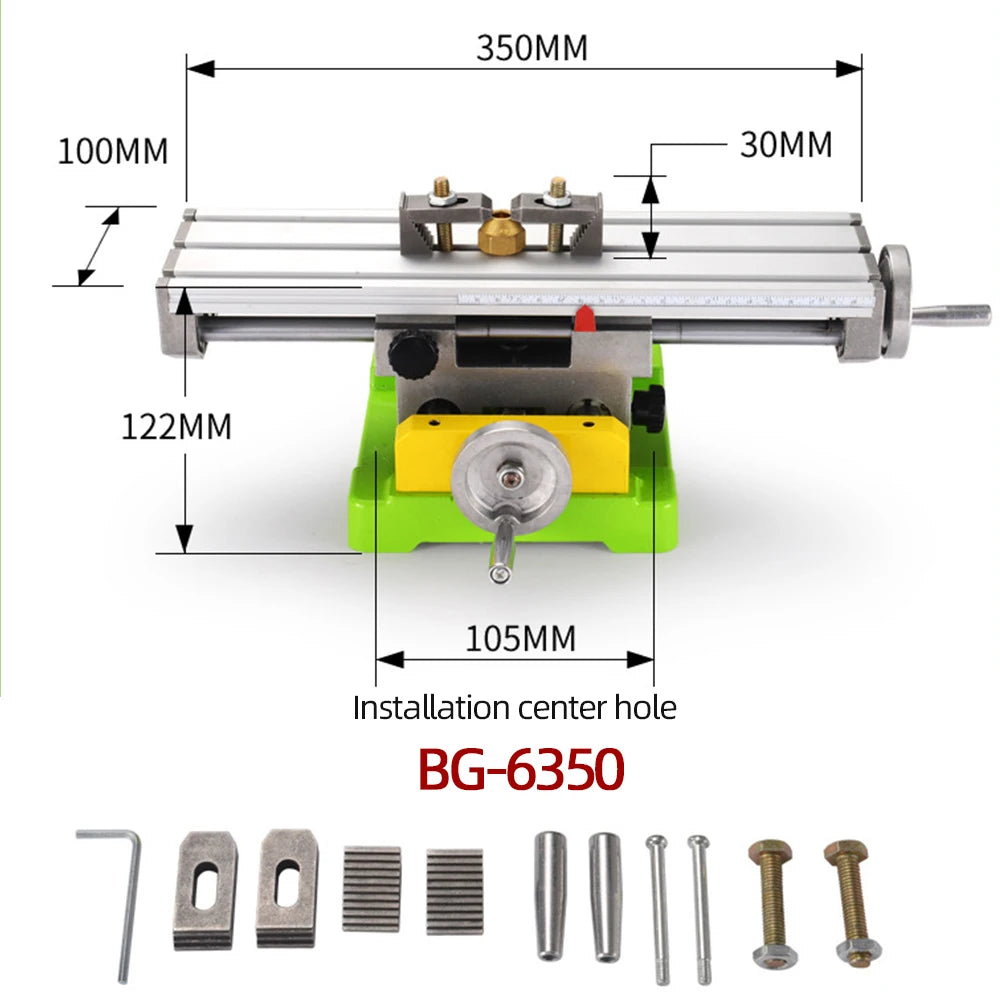

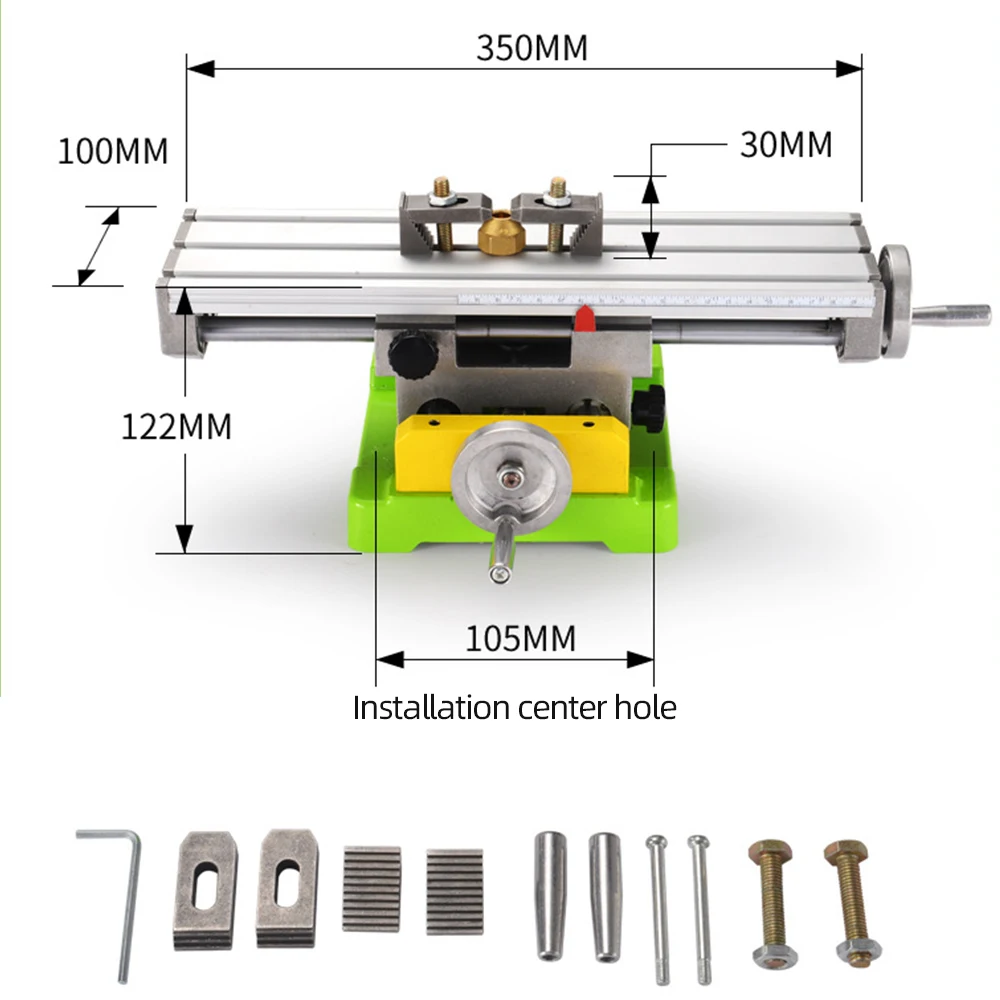

🟡 Model: BG6350

• Table Size: 350 x 100 mm
• X Travel: 180 mm
• Y Travel: 50 mm
• Lead Screws: M14x3
• Handwheel: 1 rotation = 3 mm
• Subdivision Marks: 0.05 mm

Package Includes:

• 1 × Mini Precision Milling Worktable (Model Selected: BG6300 / BG6330 / BG6350)
• 2 × Adjustable Work Clamps (included with table)

Applications:

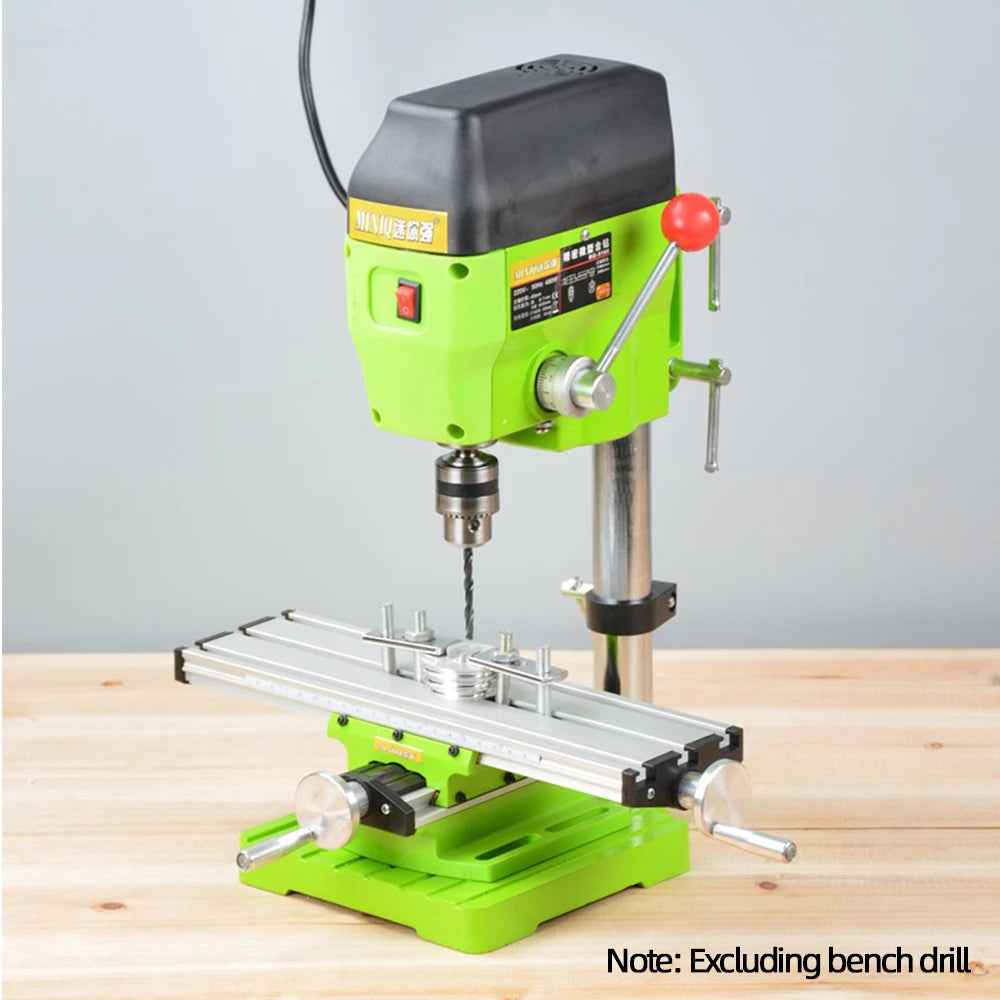

Ideal for woodworking, metal engraving, jewelry making, DIY CNC tasks, PCB circuit drilling, and model crafting. Perfect for hobbyists, makers, and professional machinists who require stability and precision on a compact bench.

🧰 Enhance your mini drill setup today with this professional-grade precision worktable from ALLSOME.
