1–3 Ton Mini Excavators with Euro 5/EPA – Compact Multifunctional Diggers for Home, Farm, and Construction
1–3 Ton Mini Excavators with Euro 5/EPA – Compact Multifunctional Diggers for Home, Farm, and Construction
Couldn't load pickup availability
Mini Excavators 1 Ton to 3 Ton – Euro 5/EPA Certified Compact Diggers | Customizable for Home, Farm, and Construction Use
Upgrade your worksite efficiency with our range of high-performance Mini Excavators from 1 Ton to 3 Ton capacity, designed for versatile use in retail, home renovation, farming, landscaping, trenching, and light construction. Equipped with world-renowned Kubota, Koop, Briggs & Stratton, Yanmar engines and meeting EURO 5 / EPA / CE / ISO certifications, these diggers are compact, powerful, and customizable.
Key Features:
- Customizable Capacity: From 1T to 3T mini excavators available with a variety of attachments and configurations.
- Top-Brand Engines: Kubota, Yanmar, KOOP, Briggs & Stratton, and Laidong engines for reliability and performance.
- Multifunctional Performance: Ideal for digging, trenching, grading, landscaping, demolition, and more.
- Hydraulic Drive System: Featuring piston or LIVO hydraulic motors, offering efficient and smooth operation.
- OEM & ODM Supported: Customize logos, colors, and even technical configurations to match your business or personal needs.
- Professional Support: Machinery test reports and video inspections provided, with global shipping and after-sales service.
Popular Models Overview:
✅ XT10 Mini Excavator – 1 Ton
- Rated Power: 7kW / 13.5HP
- Bucket Capacity: 0.025 m³
- Max Digging Depth: 1626 mm | Reach: 3077 mm
- Engine: KOOP / Briggs & Stratton
- Operating Weight: 1000 kg
✅ XT13U Mini Excavator – 1.3 Ton
- Rated Power: 7kW | Max Digging Force: 8KN
- Hydraulic Flow: 21 L/min | Work Pressure: 20 MPa
- Compact Size: 3010×950×1520 mm
✅ XT18U Mini Excavator – 1.8 Ton
- Engine: Kubota D902 or Laidong 385
- Bucket Capacity: 0.045 m³
- Max Digging Depth: 1900 mm
- Track Width: 250 mm | Adjustable Tracks (optional)

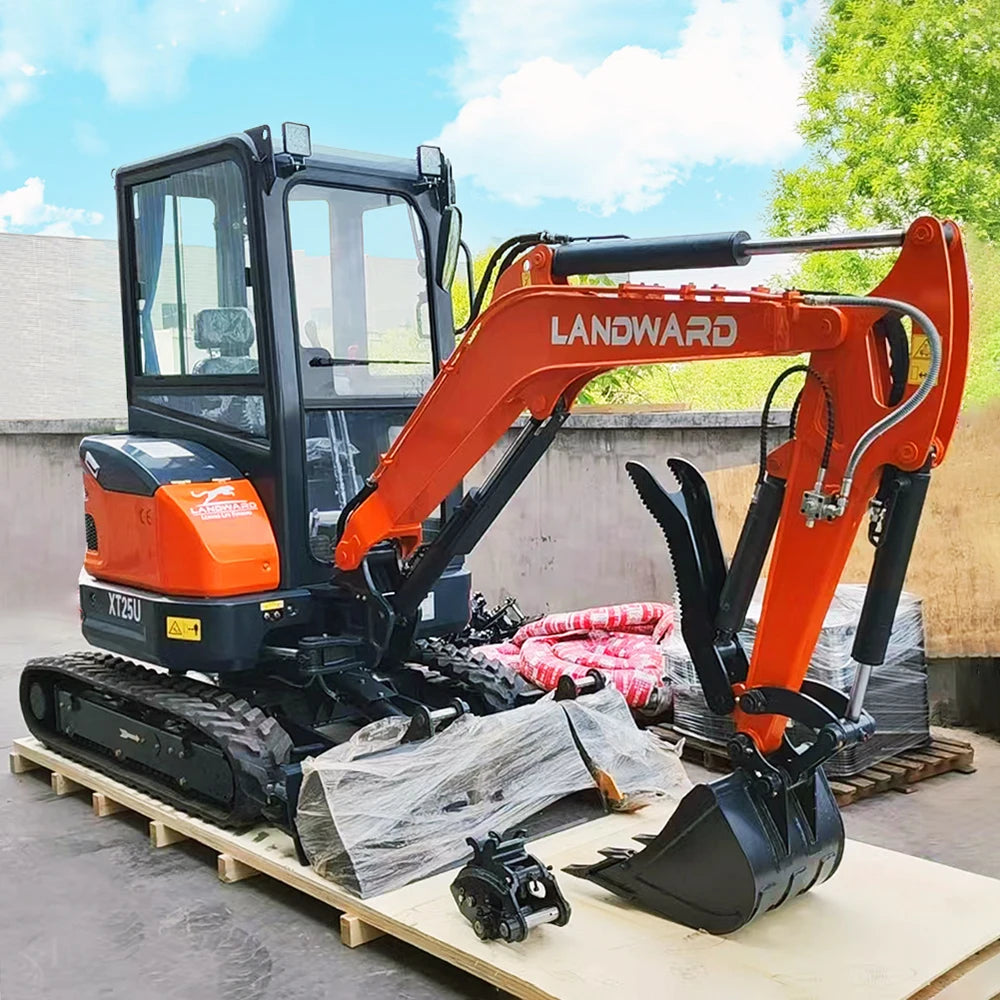

✅ XT25U Mini Excavator – 2.5 Ton
- Engine: Yanmar 3TNV80F | Rated Power: 15.2 kW
- Max Digging Depth: 2410 mm | Reach: 4520 mm
- Bucket Force: 20KN | Climbing Angle: 57°
- Dimensions: 4100×1500×2440 mm
✅ XT35U Mini Excavator – 3.7 Ton
- Engine: Kubota 1703 | Power: 18.5 kW
- Bucket Capacity: 0.11 m³ | Rotation Speed: 12 rpm
- Fuel Tank: 40L | Hydraulic Tank: 41L
Applications:
- Trenching and Digging for Home or Farm
- Landscaping and Site Preparation
- Urban Construction and Renovation
- Utility Line Installation
- Municipal Projects
Shipping & Trade Terms:
- FOB & CIF Terms Available from Qingdao,
- Support LCL / FCL Sea Freight for global buyers
- Fast production turnaround and OEM support for 1 unit+
Warranty & Support:
- 1.5 Years Warranty for machine and core components
- Includes technical guidance, video support, and spare parts assistance
📞 Contact Us:
Need help choosing the right model or configuration? Click the inquiry button or message us for tailored recommendations, pricing, and delivery timelines.
We support OEM & ODM service for any clients, even you only need 1 pcs.
Click on more different models to choose which is suitable for you, or contact us directly,
our sales will recommend most suitable excavator for you.
Talk with our sales colleague, you will get exclusive one-to-one serviceand outlet sale price
Please consult our sales for more details if you need other delivery solutions.
Please note: All our mini excavators are to be customized, please contact our sales to confirm detail information before/after placing your order. You will be treated friendly and sincerely, and you will find that will be very helpful.
|
XT25U Mini Excavator |
|
|
Machine weight (Kg) |
2500 |
|
Rated bucket capacity (m³) |
0.068 |
|
Engine brand |
Yanmar |
|
Engine model |
3TNV80F |
|
Rated power (kw) |
15.2 |
|
Rated displacement (ml) |
1267 |
|
Rated speed (r/min) |
2500 |
|
Climbing angle° |
57 |
|
Slewing speed (r/min) |
9.5 |
|
Travel speed (km/h) |
2-3.8 |
|
Steering control |
Foot pedal control |
|
Drive mode |
Hydraulic drive |
|
Travel motor type |
Piston hydraulic motor |
|
Service brake |
Hydraulic brake |
|
Parking brake |
Hydraulic brake |
|
Fuel tank capacity (L) |
20 |
|
Hydraulic oil tank capacity (L) |
18 |
|
Bucket digging force (KN) |
20 |
|
Transport length (mm) |
4100 |
|
Transport width (mm) |
1500 |
|
Transport height (mm) |
2440 |
|
Slewing radius (mm) |
700 |
|
Track gauge (mm) |
1070/1270 |
|
Maximum digging radius (mm) |
4520 |
|
Maximum digging depth (mm) |
2410 |
|
Maximum digging height (mm) |
4190 |
|
Maximum unloading height (mm) |
2880 |
|
Turntable ground clearance (mm) |
490 |
|
XT10 Mini Excavator |
|
|
Operating weight (kg) |
1000 |
|
Bucket capacity (m3) |
0.025 |
|
Engine model |
Koop / Briggs & Stratton |
|
Rated power |
7kW/13.5hp |
|
Travel speed (km/h) |
2.2 |
|
Swing speed(r/min) |
12.3 |
|
Setting pressure (KPa) |
20 |
|
Bucket digging force(kN) |
7.5 |
|
Volume of hydraulic tank (L) |
10 |
|
Overall length (mm) |
2876 |
|
Overall width (mm) |
850 |
|
Overall height（to top of cab）(mm) |
2200 |
|
Track length (mm) |
1233 |
|
Track width (mm) |
180 |
|
Max. digging height (mm) |
2550 |
|
Max. dumping height (mm) |
1687 |
|
Max. digging depth (mm) |
1626 |
|
Max. digging reach (mm) |
3077 |
|
Min. swing radius (mm) |
800 |
|
XT13U Mini Excavator |
|
|
Rated power |
7Kw |
|
Volume of fuel tank |
8L |
|
Standard bucket width |
400mm |
|
Bucket capacity |
0.016m³ |
|
Weight |
1280kg |
|
Engine model |
KOOP |
|
Chassis telescopic range |
Optional |
|
Max.digging force |
8KN |
|
Multi-way valve brand |
north |
|
Hydraulic Pumps |
Shimadzu |
|
Hydraulic flow |
21L/min |
|
Work Pressure |
20Mpa |
|
Swing motor brand |
Livo |
|
Swing speed |
8r/min |
|
Travel motor brand |
Livo |
|
Travel speed |
2km/h |
|
Climbing angle |
30° |
|
Ground pressure |
28Kpa |
|
Max. digging depth |
1800mm |
|
Max. digging reach |
3050mm |
|
Max.vertical arm digging depth |
1650mm |
|
Max.digging height |
2750mm |
|
Max.unloading height |
1950mm |
|
Min. swing radius |
1320mm |
|
Chassis width |
950mm |
|
Height and width of bulldozer |
220*950 |
|
Overall Dimension |
3010*950*1520mm |
|
Track width |
180mm |
|
Track center distance |
770 |
|
Pin diameter |
25 |
|
Internal file |
90 |
|
Hole distance |
90 |
|
XT18U MINI EXCAVATOR |
|
|
Operating weight (kg) |
1800 |
|
Bucket capacity (m3) |
0.045 |
|
Engine model |
Laidong 385 / Kubota D902 |
|
Rated power |
20kW/11.2kW |
|
Volume of fuel tank (L) |
12 |
|
Travel speed (km/h) |
2 |
|
Swing speed(r/min) |
12.3 |
|
Setting pressure (KPa) |
20 |
|
Bucket digging force(kN) |
7.5 |
|
Volume of hydraulic tank (L) |
10 |
|
Overall length (mm) |
2550 |
|
Overall width (mm) |
1100 |
|
Overall height （to top of cab）(mm) |
2200 |
|
Track length (mm) |
1800 |
|
Track width (mm) |
250 |
|
Max. digging height (mm) |
2900 |
|
Max. dumping height (mm) |
1950 |
|
Max. digging depth (mm) |
1900 |
|
Max. digging reach (mm) |
3227 |
|
Min. swing radius (mm) |
840 |
|
Hydraulic oil radiator |
Standard |
|
Boom swing |
optional |
|
Tracks extandable |
990-1160mm,optional |
|
XT35U Mini Excavator |
|
|
Overall Machine Weight |
3764KG |
|
Bucket Capacity |
0.11m³ |
|
Engine Model |
Kubota 1703 |
|
Engine Power |
18.5KW/2200rpm |
|
Total Length(Transportation State) |
4945mm |
|
Full Width(Transportation State) |
1700mm |
|
Full Height(Transportation State) |
2585mm |
|
Number Of Supporting Wheels |
Eight Pieces |
|
Track Width |
300mm |
|
Counterweight Ground Clearance |
595mm |
|
Minimum Ground Clearance |
270mm |
|
Wheel Spacing |
1750mm |
|
Rotation Speed |
12/rpm |
|
Fuel Tank Capacity |
40L |
|
Hydraulic Tank Volume |
41L |
|
Overall Machine Pressure |
22Mpa |
