Huepar ZK04CG 4D Laser Level Set – ±2mm/10m Accuracy, Self-Leveling Cross Line Tool with Tripod, Receiver & Rangefinder

Huepar ZK04CG 4D Laser Level Set – ±2mm/10m Accuracy, Self-Leveling Cross Line Tool with Tripod, Receiver & Rangefinder

Customer Love Badge
★ Loved by +16,000 customers
Profile 1 Profile 2 Profile 3 Profile 4
$286.57 USD
$354.57 USD $286.57 USD
Sale Sold out
Duties included. Shipping calculated at checkout.
Color

Huepar ZK04CG 4D High Precision Laser Level Set – Self-Leveling Cross Line Tool

Take your construction and interior projects to the next level with the Huepar ZK04CG 4D Laser Level Set. This professional-grade laser level delivers ±2mm/10m accuracy, green beam visibility, and a complete accessory kit including tripod, laser receiver, and rangefinder. Perfect for builders, tilers, surveyors, and DIY professionals who demand precision.

Key Specifications:

  • Model: ZK04CG + LR-6RGA + TPD14A
  • Laser Type: Green Beam, Class 2 (<1mW output)
  • Accuracy: ±2mm/10m (±1/13” at 33Ft)
  • Lines: 4 x 360° (16 lines total)
  • Self-leveling Range: ±3°, ≤3s auto-leveling
  • Battery: 8000mAh Li-ion (Type-C rechargeable)
  • Operating Time: ~8 hours with all beams on
  • Working Distance: 30m / up to 60m with receiver
  • Mount Size: 1/4”-20 & 5/8”-11 compatible
  • IP Rating: IP54 dust & water resistance
  • Operating Temp: -10°C to 50°C (14℉ ~ 122℉)

Advanced Features:

  • ✔️ Remote control for line switching up to 10m
  • ✔️ Self-leveling & manual modes with ±3° compensation
  • ✔️ Outdoor pulse mode for extended range
  • ✔️ Strong magnetic brackets with fine-tuning knobs
  • ✔️ 360° horizontal floor laser for tiling and flooring layouts
  • ✔️ Lifting base raises beams 0.83” to 3.2” for versatile applications

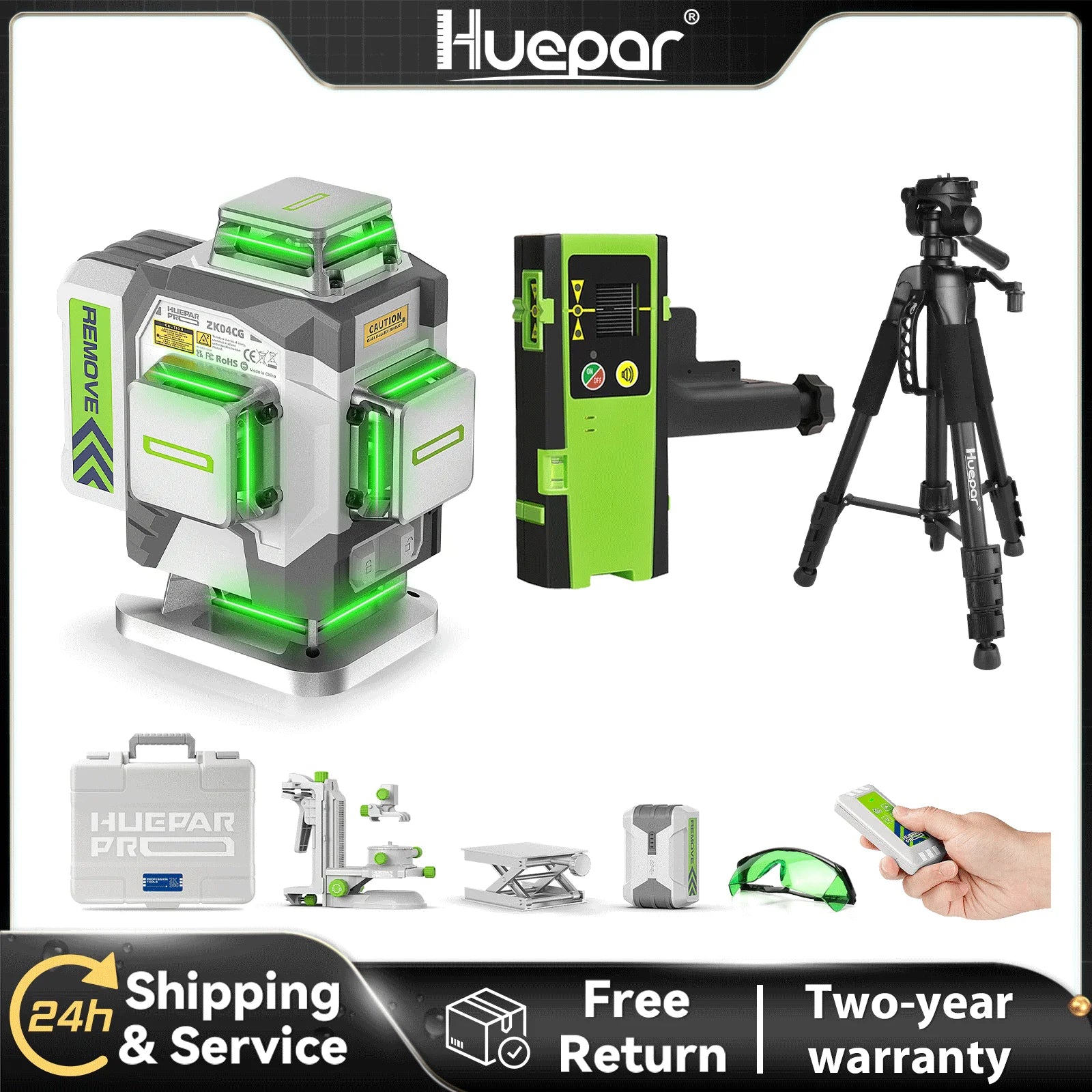

📦 Complete Package Includes:

  • Huepar ZK04CG Laser Level
  • Huepar LR-6RGA Receiver (or LR-5RG/LR-8RG)
  • Huepar TPD14A Tripod
  • 8000mAh Li-ion Battery (rechargeable, Type-C)
  • Remote Control
  • Magnetic Brackets & Window Adapter
  • Lifting Base, Green Glasses, Target Plate
  • 5V/2A Power Adapter + Type-C Cable
  • Hard Carry Case + User Manual

✅ Trusted by professionals worldwide. Whether you’re working on tiling, ceilings, windows, or large-scale layouts – the Huepar ZK04CG ensures accuracy, visibility, and reliability. Order now with CE, FCC & RoHS certifications included!

huepar zk04cg laser level, huepar 4d laser level set, 16 line self leveling laser, ±2mm/10m accuracy laser level, green beam laser level with tripod, laser level with receiver and rangefinder, professional laser leveling tool, construction laser measuring tool, 4 x 360 laser level huepar, laser level for tiling and flooring, self leveling cross line laser tool, huepar zk04cg with remote control, rechargeable li-ion battery laser level, type c charging laser tool, ip54 waterproof laser level, green laser line tool with tripod, 4d cross line laser with accessories, laser level kit with hard case, magnetic bracket laser level huepar, outdoor pulse mode laser level, precision laser level for construction, wall tiling laser alignment tool, 360 horizontal floor laser level, floor layout laser tool, ceiling installation laser level, 8 hour battery life laser level, long range laser level with detector, laser level for diy home improvement, laser measuring tool huepar zk04cg, laser tool for surveyors and engineers, huepar green beam laser class 2, high brightness laser level ±2mm, compact laser level kit, professional laser measuring equipment, tripod mounted laser level set, remote controlled laser line level, rechargeable construction laser device, multi line laser level for builders, leveling instrument huepar zk04cg, indoor outdoor laser level kit, huepar zk04cg europe usa shipping, laser level with lifting base, heavy duty laser alignment tool, laser level for walls and stairs, window installation laser level, 16 line green laser for precision, huepar laser level with magnetic base, accurate green laser line tool, self leveling tool with rangefinder, laser level for builders tilers electricians, huepar zk04cg laser package, huepar tripod laser set, huepar laser receiver detector, construction alignment tool laser, best professional laser level 2025

Huepar ZK04CG Set 4D High Precision Laser Level ±2mm/10m Self-leveling Cross Line Laser Tools With Tripod,Receiver,Rangefinder


Huepar ZK04CG 4 x 360 2±mm Accuracy Green Laser Level Specifications:


Model:

ZK04CG Green Beams Laser Level


Power Source:

3.7V/8000mAh Li-ion Battery

Laser Class:

Class 2 (IEC/EN60825-1/2014), <1mW


Operating Time:

About 8 hours

Laser Wavelength:

505-520nm


Charging Time:

About 5 hrs with 5V/2A adapter

Leveling Accuracy:

±2mm/10 or 1/13" at 33Ft.


Mount Size:

1/4"-20

Compensation Range:

±3°


Charging Port

Type-C

Self-leveling Time:

≤3 Seconds


IP Rating:

IP54

Reference Working Distance:

30m, 98Ft.(60-100 LUX)


Work Temperature:

14℉~ 122℉(-10℃~ 50℃)

Reference Working Distance:

40-60m/197Ft. with Laser Receiver


Storage Temperature:

"-4℉~ 158℉(-20℃~ 70℃)

PWM for Laser Receiver:

1:1


Frequency of Laser Receiver

10KHz (Matched PWM and frequency, Line lasers can work with LR-6RG Laser Receiver)

Max Height:

56.3" (143 cm)


Load Capacity:

22.05 lb (10.0 kg)

Warning:
Avoid direct exposure of the laser beam to the eyes.The laser would be affected by strong sun light when work outside.

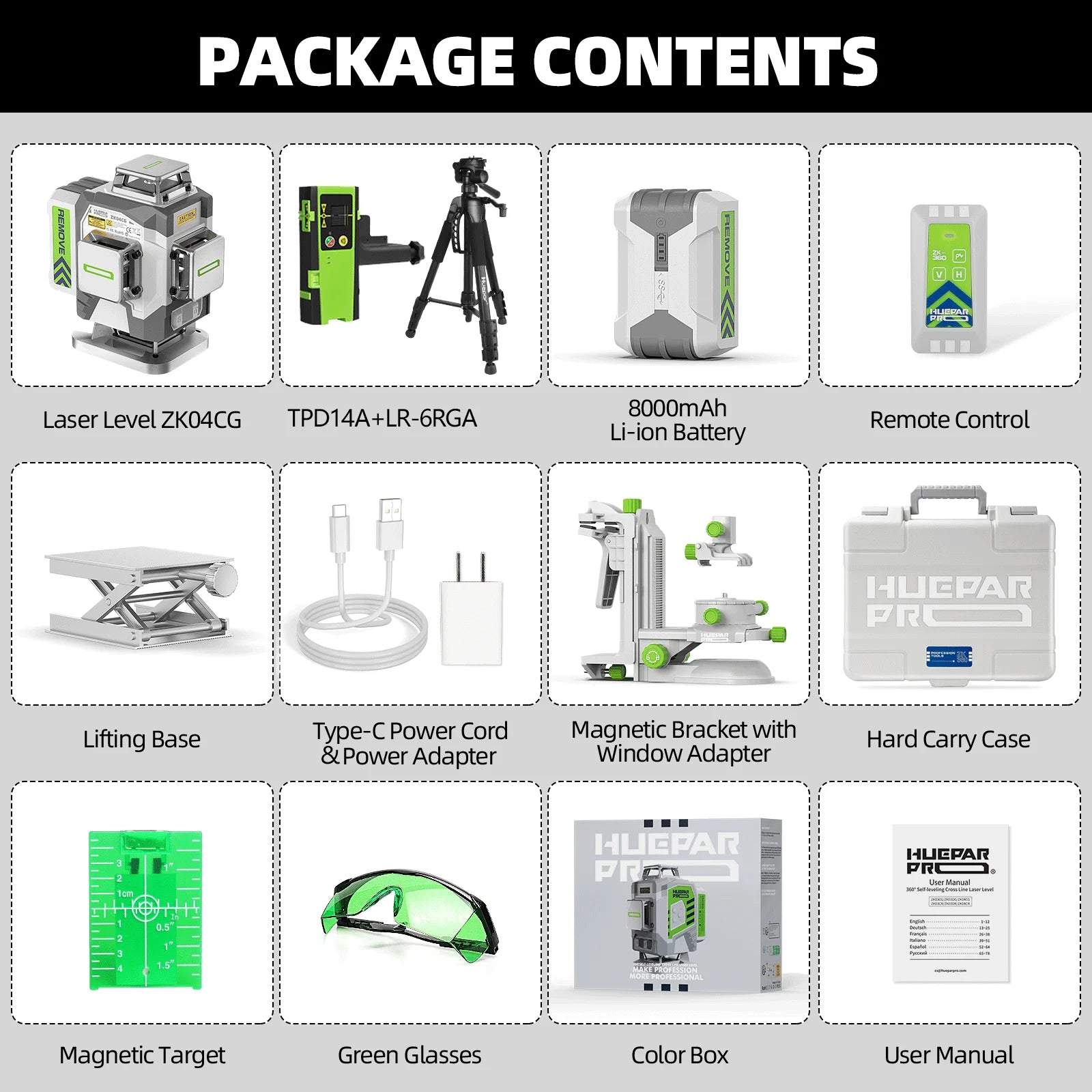

  Package Contents:

  • 1x ZK04CG Laser Level

  • 1x Huepar Laser Receiver LR-6RGA (or LR-5RG or LR-8RG)

  • 1x Huepar TPD14A Tripod (or TPD14)

  • 1x 8000mAh Li-ion Battery

  • 3x Magnetic Bracket with window adapter ( PV10+pro & PV6 clip)

  • 1x Remote Control

  • 1x Lifting Base

  • 1x Green Glasses

  • 1x 5V/2A Power Adapter + 1x Typc-C Power Cord

  • 1x Hard Carry Case

  • 1x Color Box

  • 1x Laser Target Plate

  • 1x User Manual

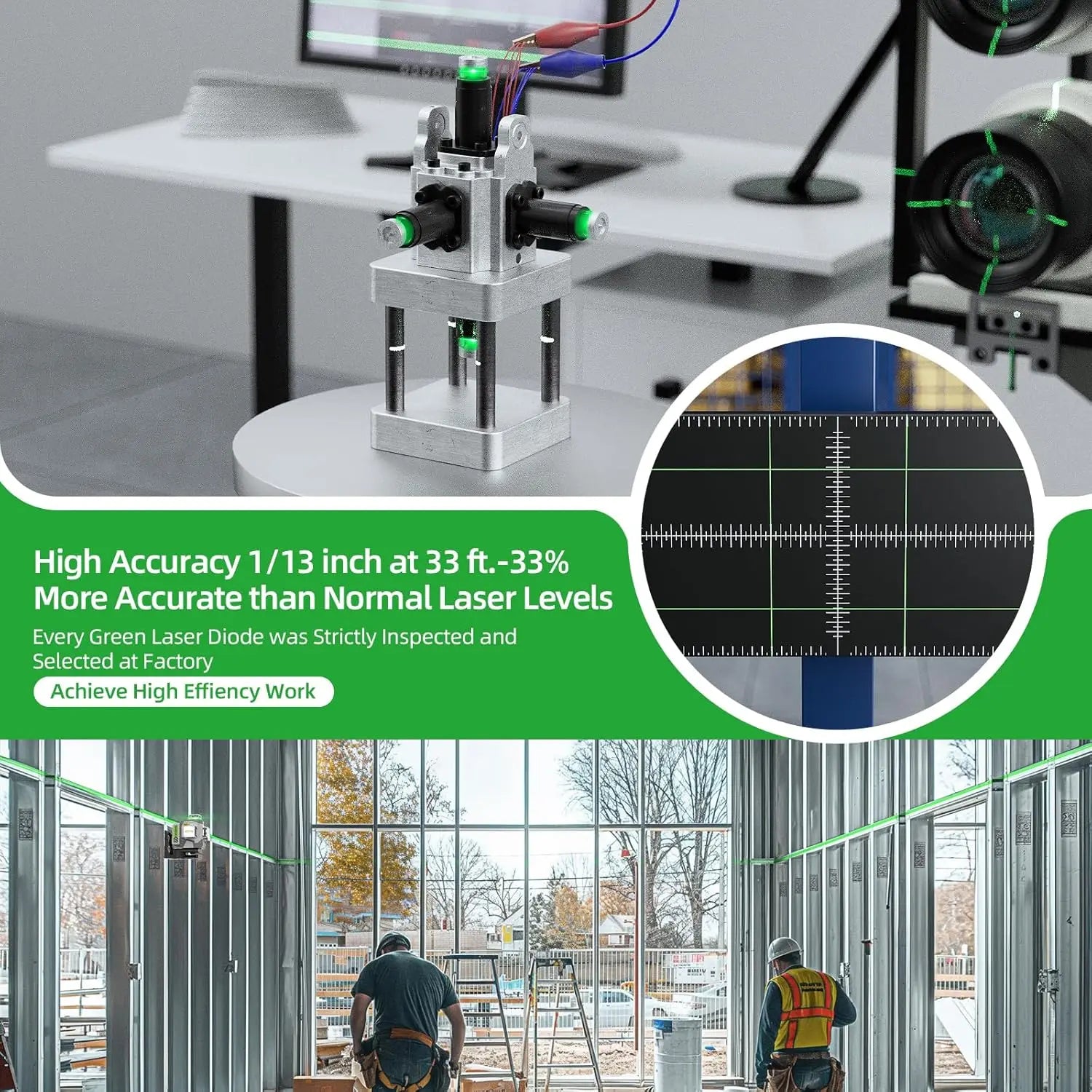

High Accuracy ±2mm/10, ±1/13 inch at 33Ft

  • From a large number of laser level modules, high precision modules are selected and specially tuned by hand to produce a laser level with an accuracy of 2mm at 10m.

  • The percentage of high-precision modules in the total number of modules is only 10%.

  • Short press the "H" and "V" buttons on the keypad to switch the Horizontal and Vertical laser lines separately.

  • The remote control enables to select the 4 x 360° laser lines individually at a distance up to 32.8Ft.

  • The laser line(s) can be temporarily turned OFF by the remote control when need to leave for a while.


Line Switching

  • Short press the "H" and "V" buttons on the keypad to switch the Horizontal and Vertical laser lines separately.

  • The remote control enables to select the 4 x 360° laser lines individually at a distance up to 32.8Ft.

  • The laser line(s) can be temporarily turned OFF by the remote control when need to leave for a while.

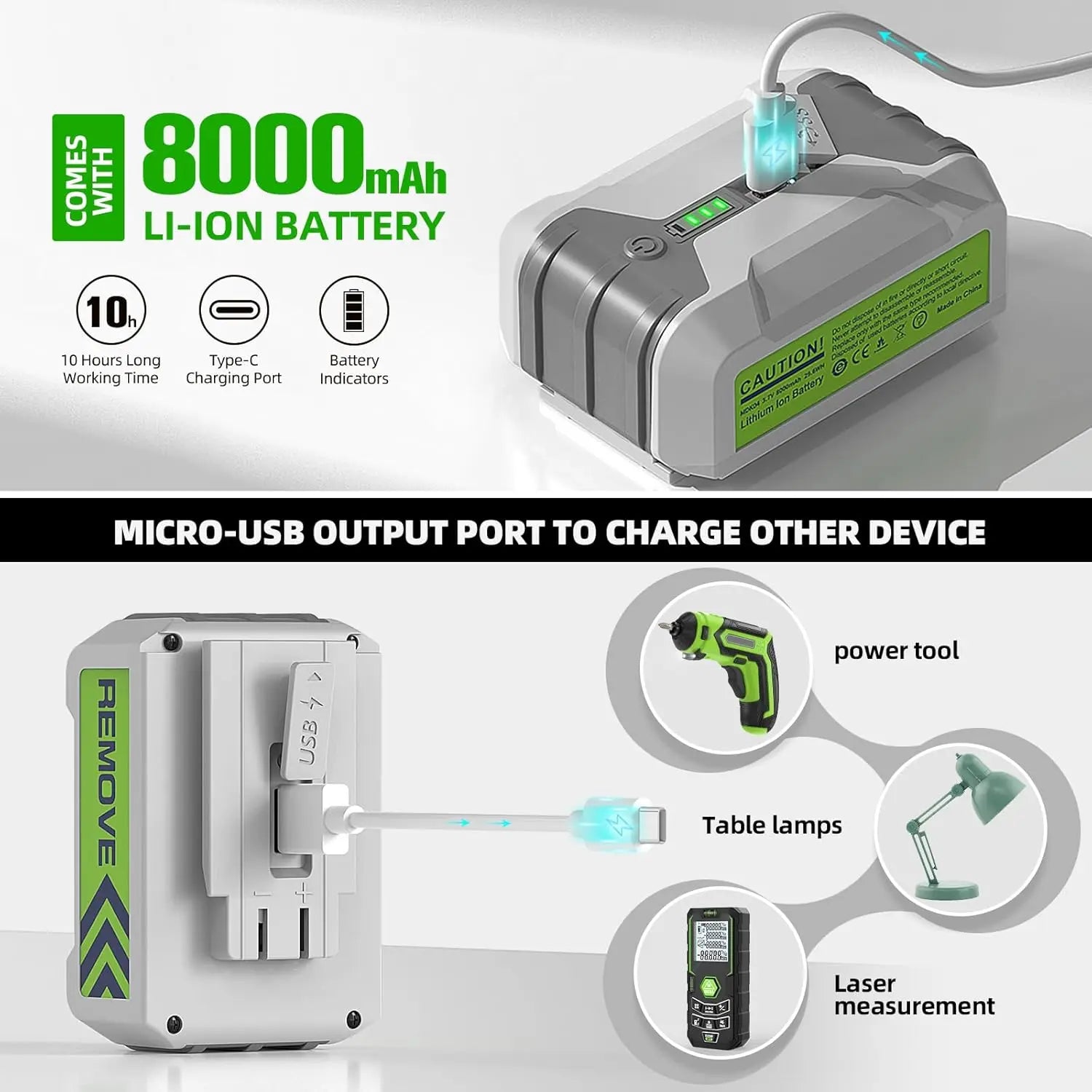

8 Hours Working Time With all beams on

  • 8000mAh rechargeable Li-ion battery support the laser level to work for 8 hours with all four 360° laser beams on.

  • Type-C charging port can be used to charge the battery through car charger, rechargeable treasure and other ways.

  • Battery indicators let you know the power status at any time.

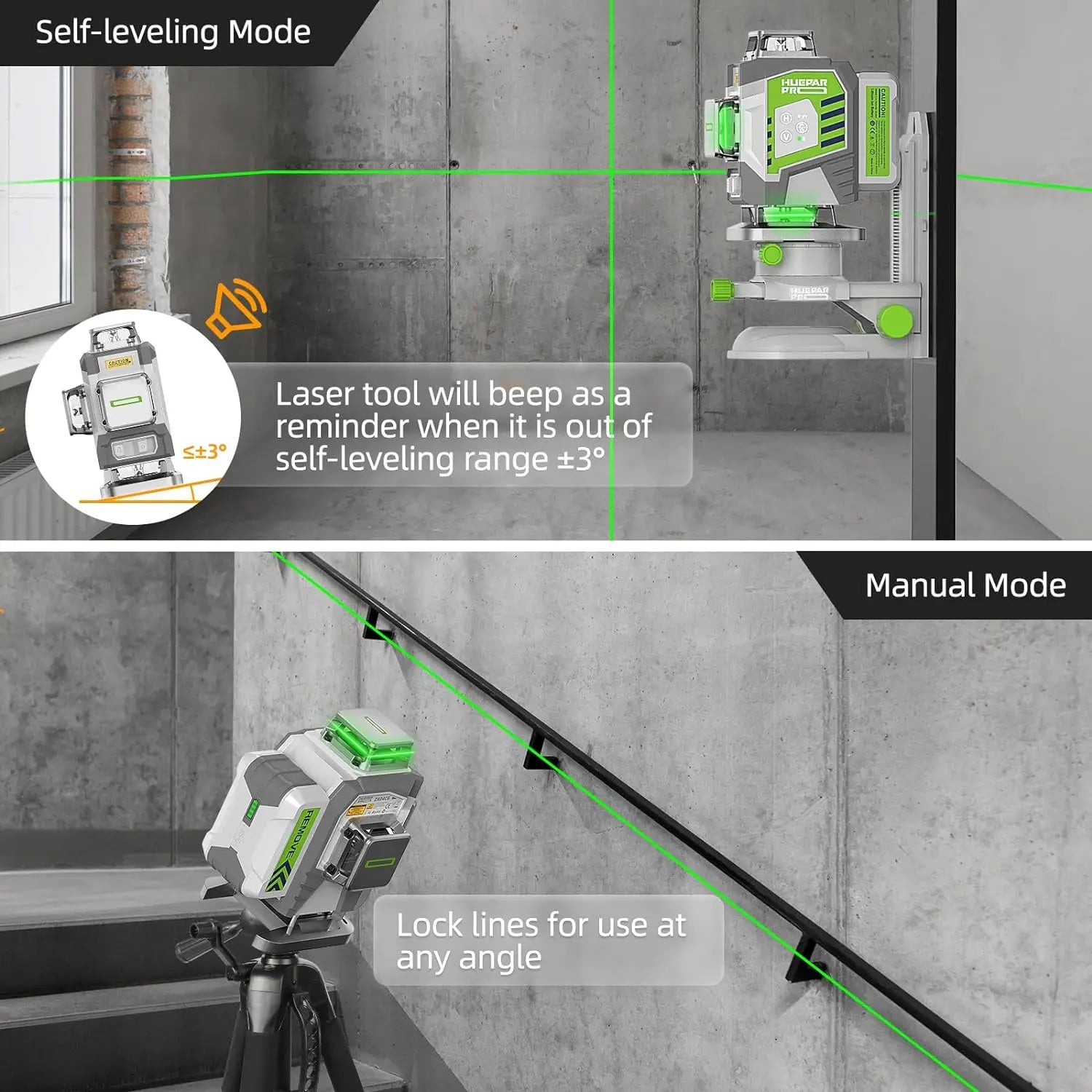

Self-leveling & Manual Mode

  • Self-leveling mode:  Unlock the pendulum, and enable the self-leveling mode, when the tool exceeds the self-leveling range by ±3°.

  • The laser beam(s) will blink about every 3-5 seconds to notify the user it is not self-leveling now.

  • Manual mode:Once the pendulum is locked, it switches to manual mode, the self-leveling function is disabled, the cross laser tool is locked, and you can position the laser level at any angle you need.

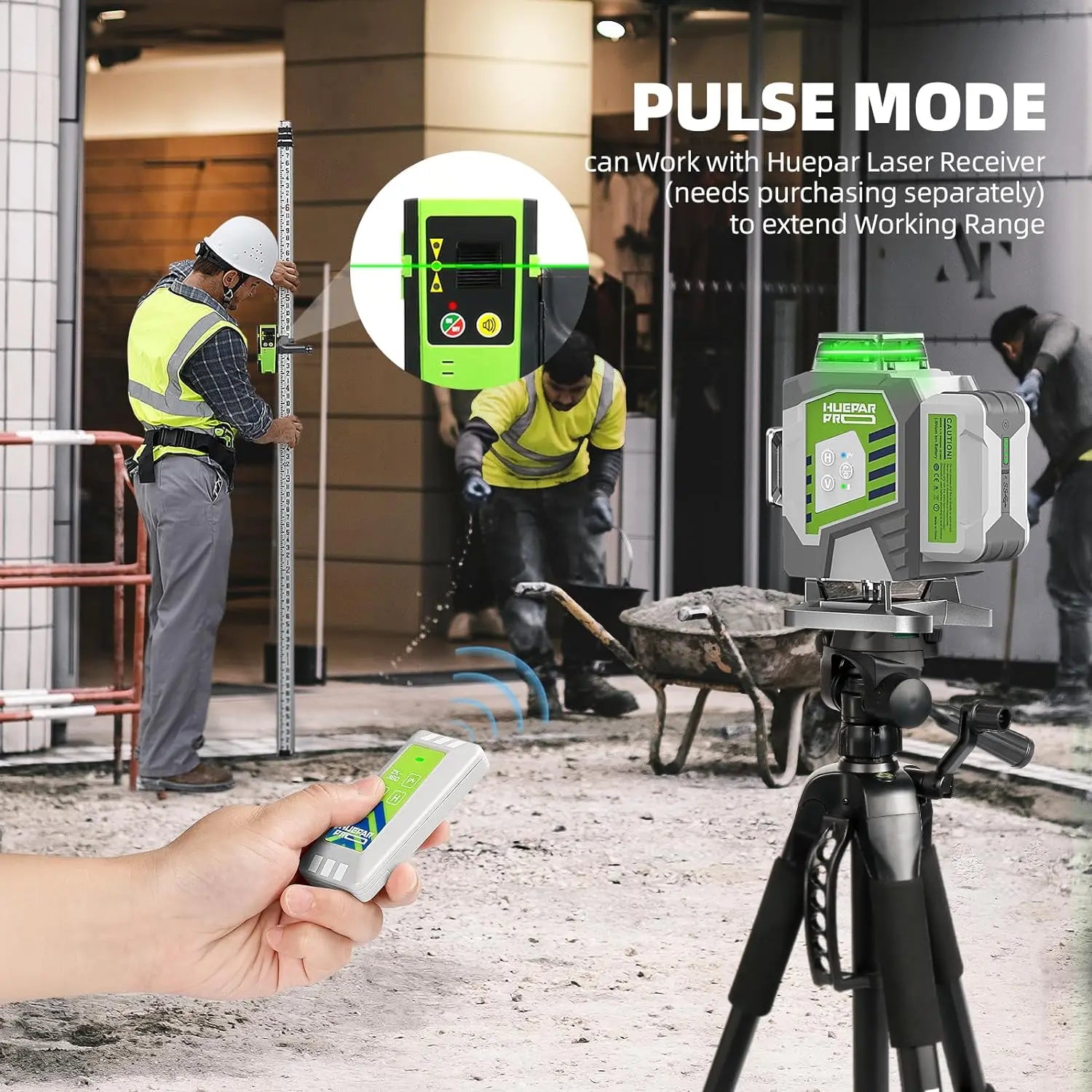

Outdoor Pulse Mode

  • Turn ON the pulse mode: After powering ON, short press the "Pv" button to turn ON/OFF the pulse mode. When the pulse mode is activated, the laser beams are dimmer.

  • Pulse mode extends the working range up to 40-60m in brighter working conditions when using with Huepar Line Laser Detector(LR-8RG/LR-5RG/LR-6RG) .

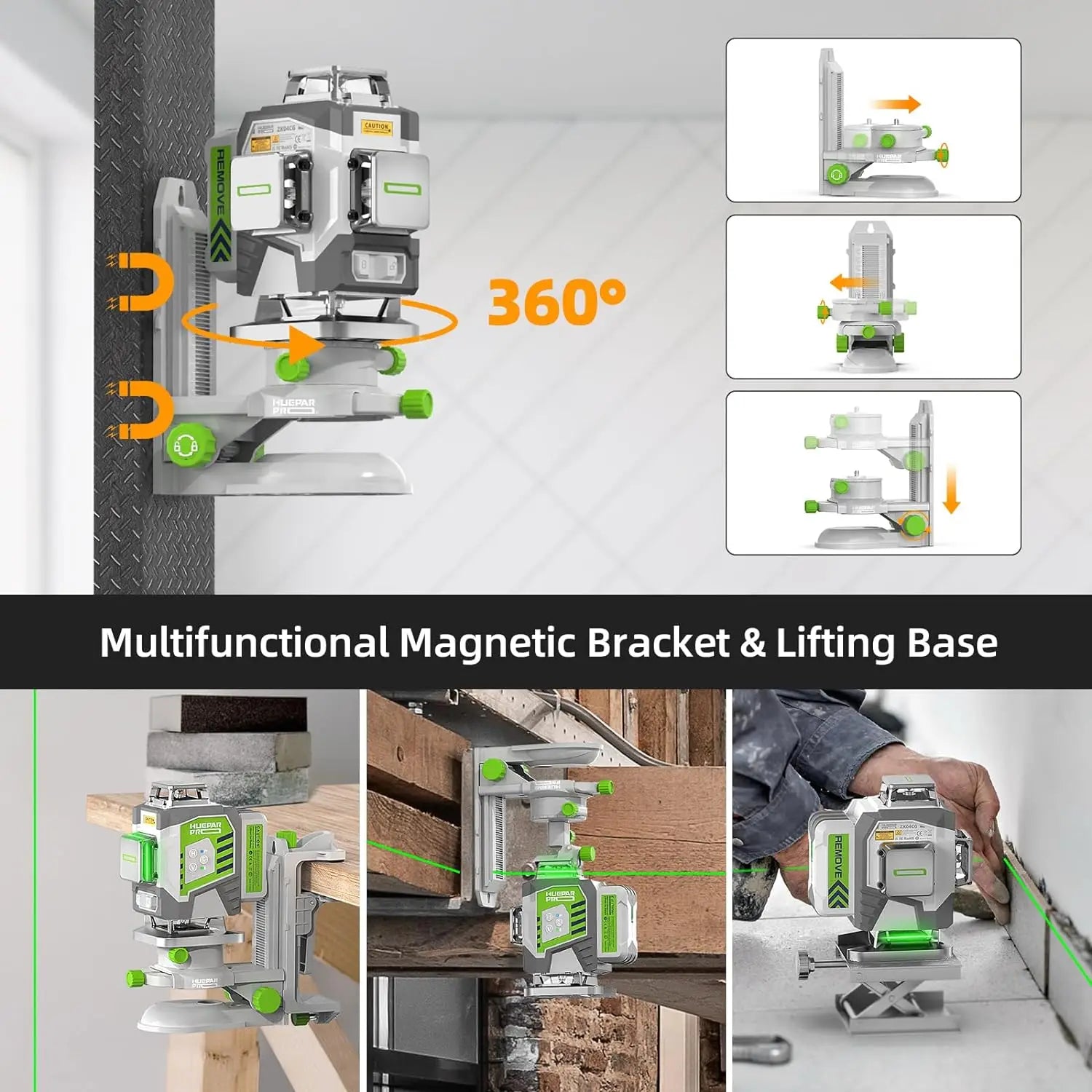

Strong magnetic bracket

  • It allows for quick positioning to metal surfaces, helping hang the laser level for wall and ceiling applications.

  • The fine-tuning knobs on the bracket enable to adjust laser line up & down, left & right, back & forth, and rotate 360°.

  • The opening size of the back clip can be adjusted, offers the ability to mount to any object up to 1.97 inch ( 5cm ) thick. The back clip is compatible with most magnetic bases, increasing the adsorption force of the magnets and stability.

  • A dedicated laser window adapter included helps to hang the laser tool, bringing the laser window closer to the wall and better for the ceiling application.

  • The bracket has 1/4"-20 and 5/8"-11 threaded mounts on bottom to be used with tripods or pole mounts. And the laser tool also has 1/4"-20 mount thread to suit a tripod or pole mount.

360° Horizontal Floor Laser & Lifting Base

  • This tiling laser tool generates one 360° horizontal floor laser at the bottom that can hit a 1/2 inch ultra-low horizontal line on the ground, prefect for the layout of tile, stone, brick, carpet and hardwood flooring, etc.

  • With the lifting base, the laser lines raise from the surface between 0.83 inch and 3.2 inch height.

With top quality hard carry case and color box.

Use of different scenarios: Construction work, window installation, wall tiling, stair laying and so on.
